WINDOWS > Aluminium Windows > MB-86SI

The modern aluminium system used for production an exterior architectural elements that require thermal and acoustic insulation

Advantages

MB-86 SI PDF

Windows in MB-86 SI system may be used both in individual buildings and in aluminum facades.
Increased thermal insulation of MB-86SI system thanks to the application of an extra chamber in the thermal break.
Very good heat transmittance coefficient U thanks to the application of thermal breaks.
Great choice of colours in the standard colour range enables to satisfy the of most demanding clients.
The profile shape enables to obtain slender and resistant structure of the windows and doors.
Tightness is ensured thanks to the application of special gaskets made of two-component EPDM synthetic rubber: solid and cellular, that provides many years of exploitation as well as great thermal insulation.
Wide range of filling thickness guarantees the possibility to use any standard and non-standard glass.

Technical data

Gaskets

Glass and rebate gaskets made of EPDM, central gasket made of two-component EPDM synthetic rubber: solid and cellular

Spacer frame

Steel galvanized frame in standard, optionally- Swisspacer Ultimate available in various colour options

Colour

According to the RAL color range in gloss , matte or wood-grain finish.

Fittings

Maco Multi Matic KS fittings with two anti-burglary bolts in standard; the window is equipped with a blockage against handle misplacement and with a sash lift*; micro-ventilation in a slot **;

*depending on window height

**for tilt and turn windows

Glass

Glass packages up to 65mm;in standard one-chamber glass package of heat transfer coefficient Ug = 1,0 W/(m2K) according to PN-EN674; he possibility to apply a three-glass package of U= 0,5 W/(m2K) coefficient or a four-glass package filled with krypton of Ug=0,3 W/(m2K); the possibility to apply glass with increased acoustic insulation, tempered, safety, anti-burglary, ornament, solar protective.

Profile

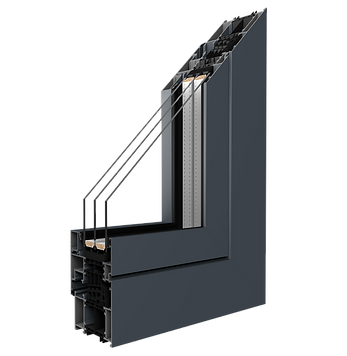

This profile has a three-chamber structure with the structural depth of the window sections 77 mm (frames) and 86 mm (sash), with a thermal break made of polyamide reinforced with fiberglass. Extra chamber in the thermal break.

Glass

With over 20 years of experience in production of composite glass, we have a wide range of glass that may equip your windows and doors. They fulfill strict requirements regarding energy efficiency and sound insulation. The offer also includes safe, anti-theft, sun screening glass, as well as glass with low transparency. There is also an option to apply polycarbonate and fillings.

33.1 Safety

33.2 Safety Matt Film

44.4 Anti-burglary

Antisol Blue 6

Antisol Brown 4

Antisol Brown 6

Antisol Green 4

Antisol Green 6

Antisol Grey 6

Black Line

Chinchilla White 4

Float 4

Float 6

Mirastar

Ornament Cathedral

Ornament Delta 4

Ornament Master Carre

Ornament Silvit 4

Ornament Stripes 4

Reflektofloat Blue 6

Reflektofloat Brown 6

Satinovo Matt

Stripes Matt

Handles

The handles applied in our products stand out for elegant design, various color options and ergonomic shape. The implemented solutions give great application possibilities that fulfill Clients’ needs and expectations.

The handles come in options with a key or a button preventing accidental opening.

DUBLIN WITH BUTTON (RAL7016)

DUBLIN WITH BUTTON (BROWN RAL8019)

DUBLIN WITH BUTTON (RAL9005)

DUBLIN WITH BUTTON (SILVER)

DUBLIN WITH BUTTON (WHITE - RAL9016)

DUBLIN WITH KEY (RAL9005)

DUBLIN WITH KEY (BROWN RAL8019)

DUBLIN WITH KEY (RAL7016)

DUBLIN WITH KEY (SILVER)

DUBLIN WITH KEY (WHITE RAL9016)

DUBLIN (RAL9005)

DUBLIN (RAL7016)

DUBLIN (BROWN RAL8019)

DUBLIN (SILVER)

DUBLIN (WHITE RAL9016)

MA 1010 (STAINLESS STEEL)

HANDLE IE (WHITE)

HANDLE IE (BROWN)

HANDLE IE (SILVER)

HANDLE WITH A KEY IE (WHITE)

HANDLE WITH A KEY IE (BROWN)

HANDLE IE (OLIVE)

HANDLE WITH A KEY IE (SILVER)

HANDLE WITH A KEY (BROWN)

HANDLE WITH A KEY (OLIVE)

HANDLE WITH A KEY (SILVER)

HANDLE WITH A KEY (WHITE)

HANDLE (SILVER)

HANDLE (OLIVE)

HANDLE (BROWN)

HANDLE (WHITE)

HANDLE WITH A BUTTON (BROWN)

HANDLE WITH A BUTTON (WHITE)

HANDLE WITH A BUTTON (SILVER)

HANDLE WITH A BUTTON (OLIVE)

HOPPE SECUSTIC (WHITE)

HOPPE SECUSTIC F1

HOPE SECUSTIC (BROWN)

HOPPE SECUSTIC F9

HOPPE SECUSTIC F2

Colour Range

Painting technology of Drutex aluminium woodwork is among the top technologies available on the global market. It ensures corrosion protection even in the most aggressive sea and industrial environment. The anodal layer ensures perfect powder paint adhesion and it fully protects the structure against filiform corrosion.

Powder Coating

The powder paint that Drutex applies is from renowned producers with years of experience on the architecture market. Their coating stands out for perfect resistance to weather conditions, are easy to maintain and they ensure superb appearance for years.

Our collection includes timeless matt finishes, elegant structures, sophisticated metallic paint as well as special effects such as anodal paint and wood effect.

Advantages

Coating Quality and Resistance

Powder varnishing ensures a more uniform coating and higher resistance to abrasion, mechanical damage and UV radiation than the so called wet coating, which allows to maintain aesthetic qualities and colour durability for years

Ecology

The powder coating technology, thanks to the possibility to retrieve unused paint, is the most beneficial for environmental protection. Combined with the cutting edge technology and no need to use solvents, it ensures maximum safety also when it comes to ecology.

Wide Colour Range and Optional Coating Structures

The offer includes dozens of colours as well as structural coating, which enables a perfect arrangement of the building and product functionality (by giving smoothness or roughness)

Environmental Protection

While designing the paint shop environmental aspects were key importance to Drutex. Apart from prolonging lifespan of their products, they minimize impact on the environment through:
